Hp Self Drilling Screw

HP Self-Drilling Screws are specialized fasteners designed to drill their own hole while being driven into materials, usually metal or wood. This eliminates the need for pre-drilling and allows for faster and more efficient assembly. These screws are commonly used in construction, especially in metal roofing, siding, and light gauge steel framing.

Key Features:

1. Self-Drilling Tip: The defining feature of these screws is their pointed, often fluted tip, which allows the screw to cut through materials without the need for a pilot hole. This saves time and simplifies installation.

2. Material: HP self-drilling screws are generally made of hardened steel or stainless steel to provide strength and resistance to corrosion. They may be coated with zinc, phosphate, or other corrosion-resistant finishes.

3. Threading: They feature aggressive threads that engage the material and provide strong holding power. The threading extends from the tip up the shank, designed to rapidly drive into metal or wood.

4. Drive Type:

   • Phillips: A cross-shaped recess on the screw head for a Phillips screwdriver.

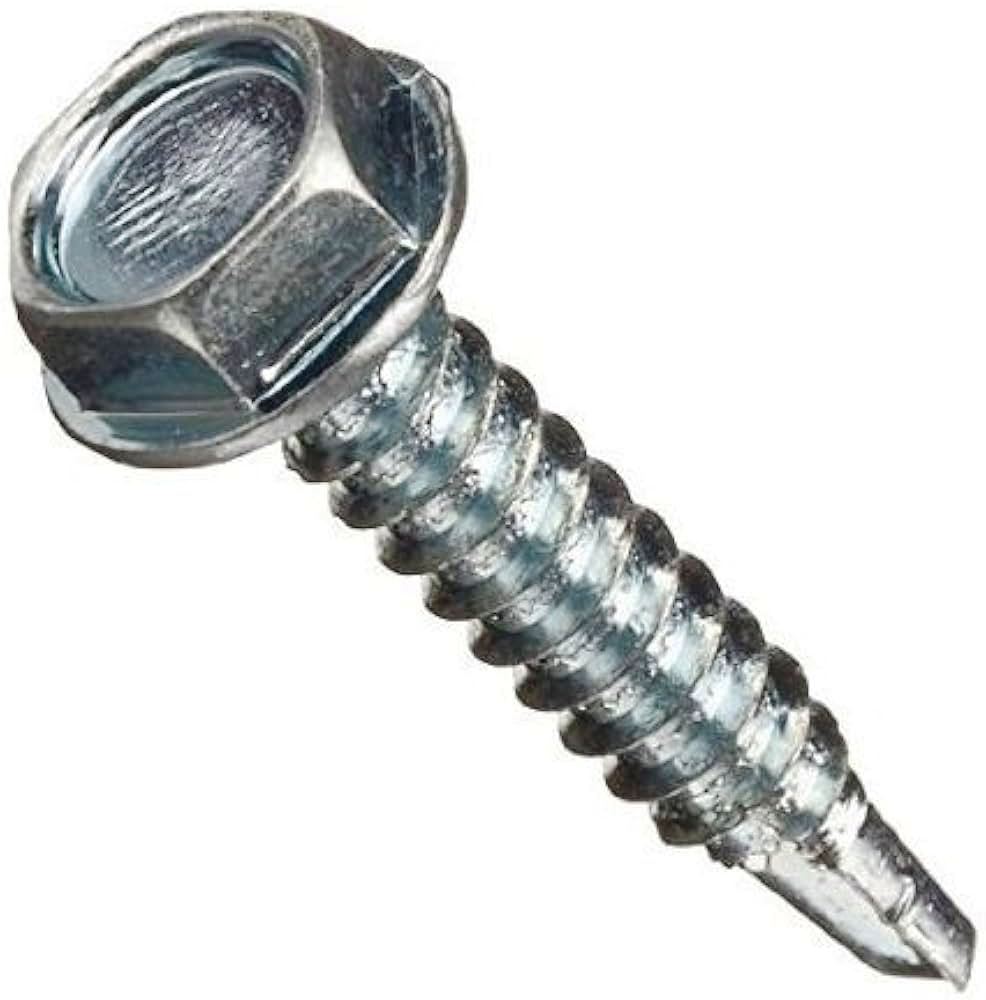

   • Hex Washer Head: Popular for providing more torque during installation, often used with metal roofing panels.

   • Torx: Star-shaped drive, providing excellent grip for high torque applications.

5. Sizes: Self-drilling screws come in various sizes, with lengths ranging from 1/2 inch to several inches, depending on the application. The diameter usually falls between #6 and #14.

6. Head Styles:

   • Hex Washer Head: Common in roofing and siding, providing good torque transfer.

   • Flat Head: For flush installations.

   • Pan Head: Rounded top, with a slightly flat bearing surface.

   • Truss Head: Low-profile with a wide head, commonly used in light materials to prevent pull-through.

Application:

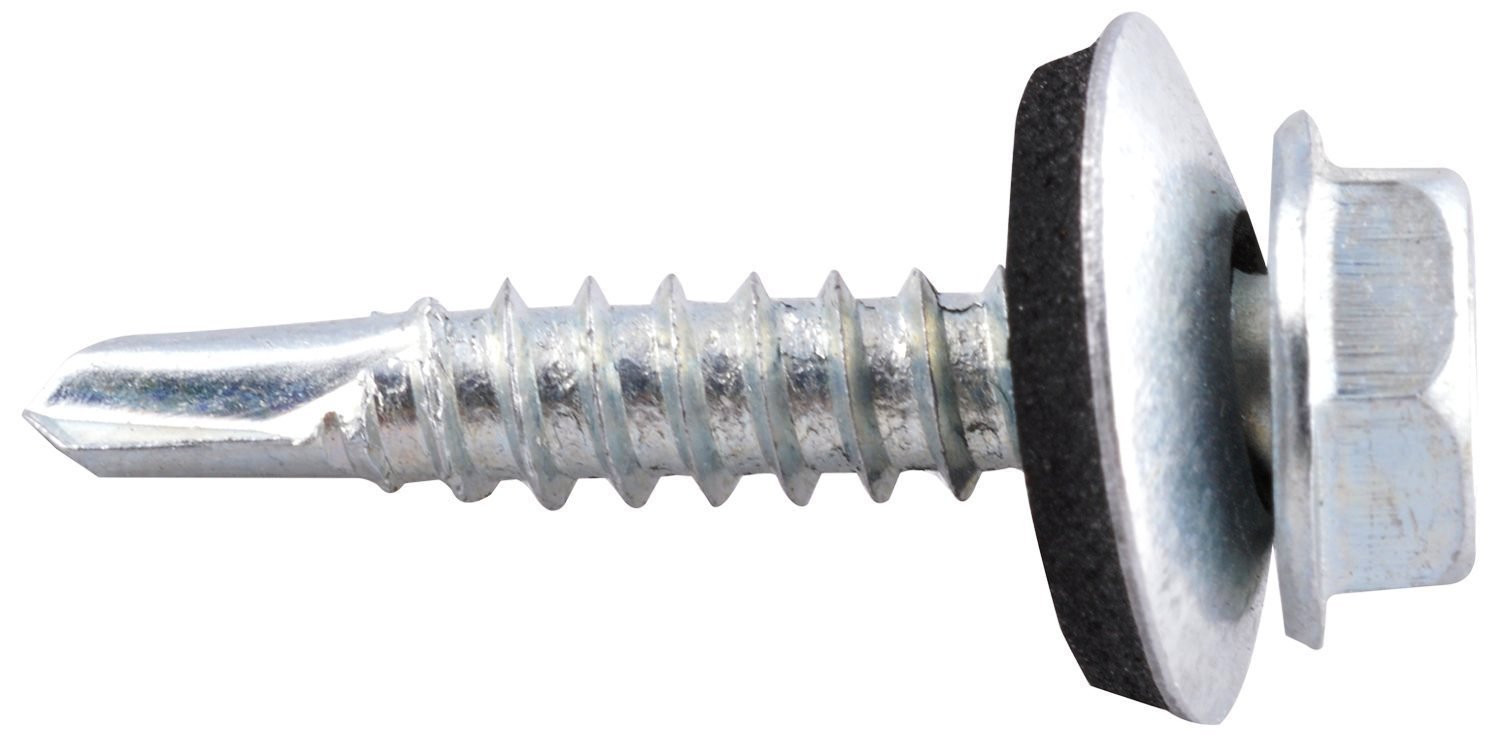

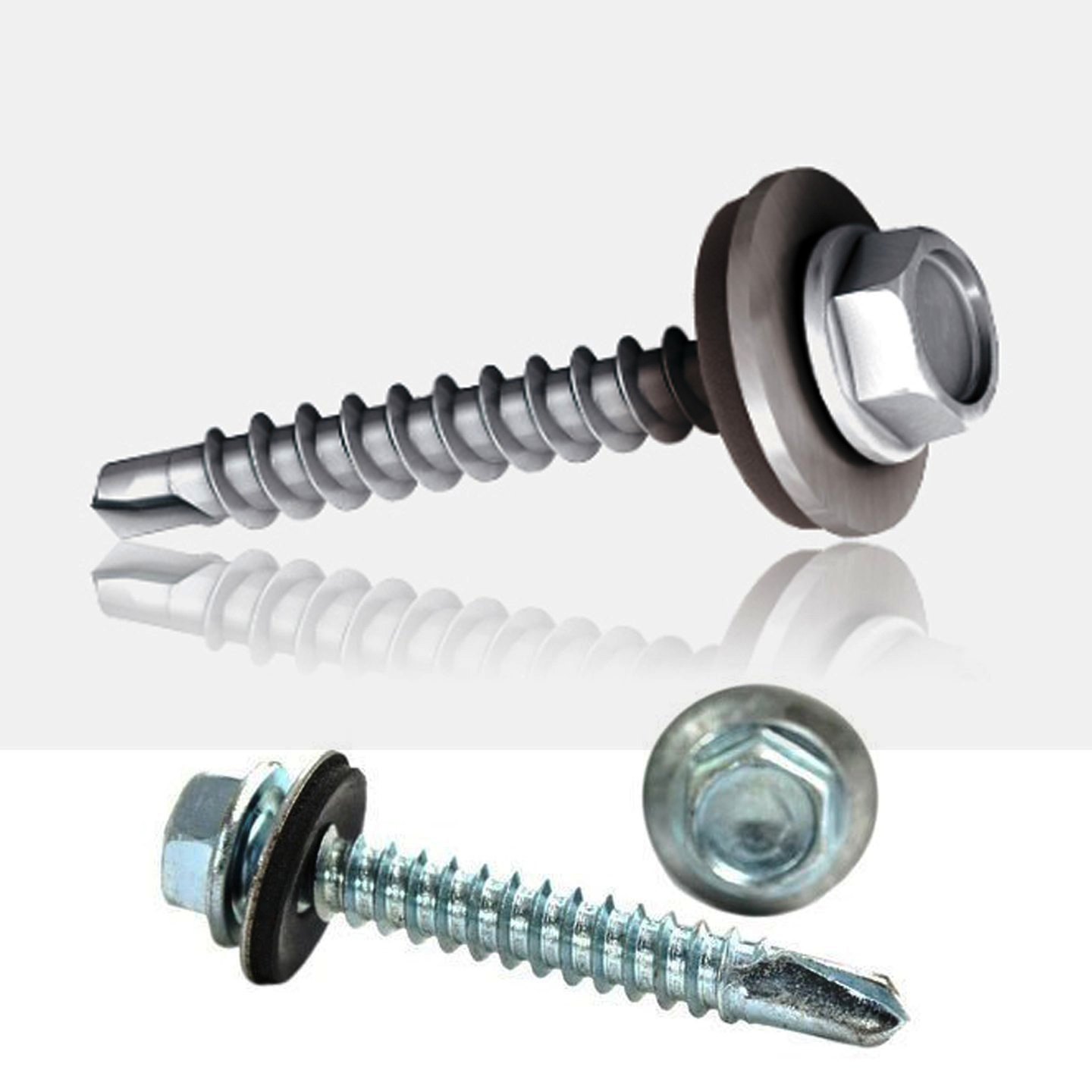

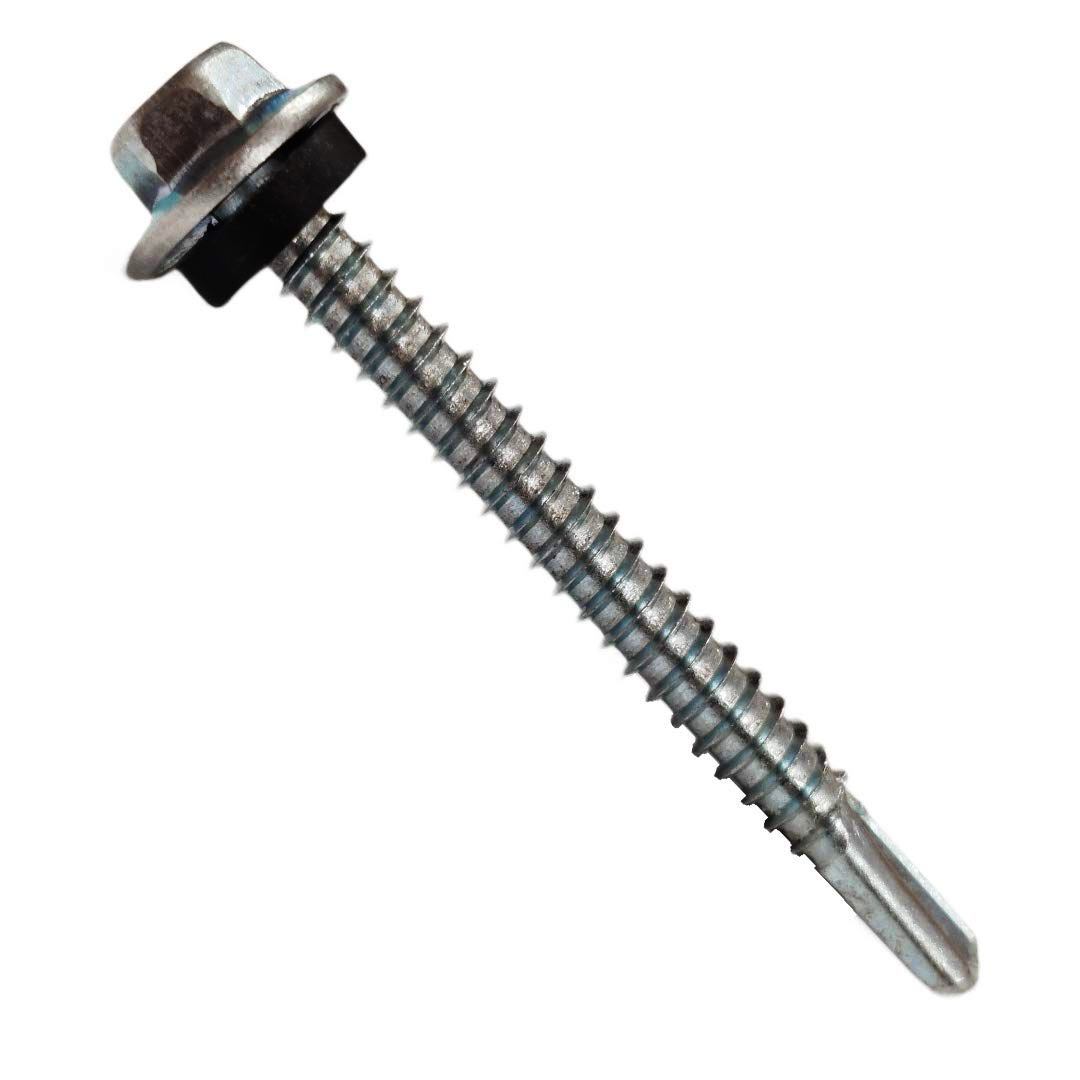

• Roofing and Siding: For attaching metal panels to steel or wooden structures, typically using screws with a hex washer head and an EPDM rubber washer for weather sealing.

• Metal-to-Metal: For joining thin sheets of metal, like steel or aluminum, with or without washers.

• Wood-to-Metal: These screws can drill through a wooden surface and anchor into metal studs or structures.

Coatings & Protection:

• Zinc Plating: Provides basic corrosion resistance and is typically used in indoor or light outdoor applications.

• Galvanized: Offers improved rust protection, making it ideal for outdoor or harsh environments.

• Stainless Steel: For maximum corrosion resistance, especially in marine or highly humid environments.

Advantages:

1. Efficiency: Eliminates the need for a pilot hole, reducing installation time.

2. Versatility: Suitable for a wide range of materials like steel, aluminum, and wood.

3. Cost-Effective: Fewer tools and steps required during installation.

4. Secure Holding: The threading and tip design create a secure fit with less chance of stripping.

5. Variety: Available in many sizes and types for different applications.
